KT-510C Switcher

Original price was: 1.200,00 €.Current price is: 1.050,00 €. Exc. VAT

ATEM contol panel with a
joystick controller , support 40 chanels,
support 1/ME to 4/ME
support web UI control , customaztion button , drag the plugin to the device, wireless tally light optional.

Available on back-order

Description

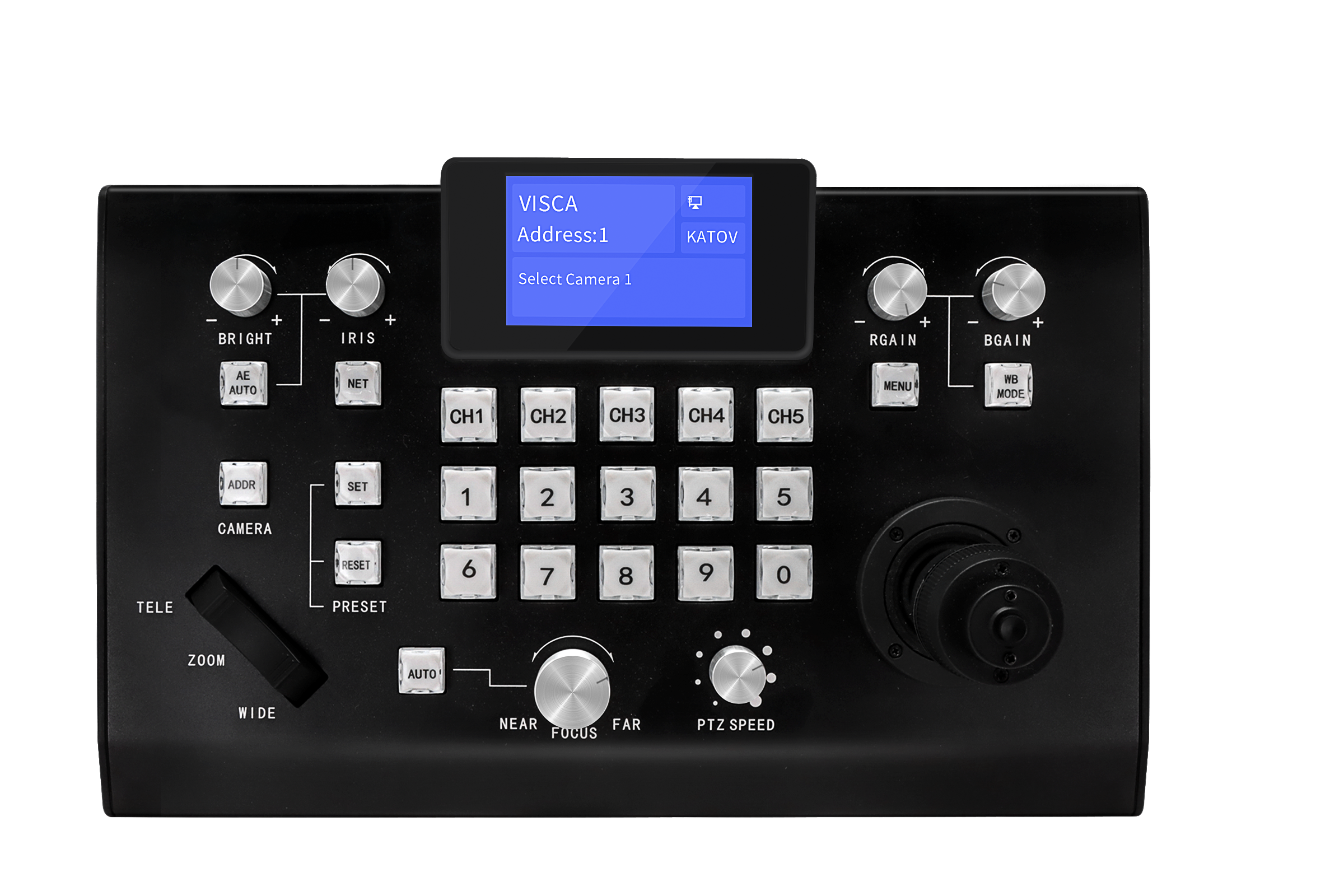

New Arrival 3D NDI PTZ Camera with RS232 RS485 ONVIF
VISCA IP POE Keyboard Joystick Controller for Video Conference Systems

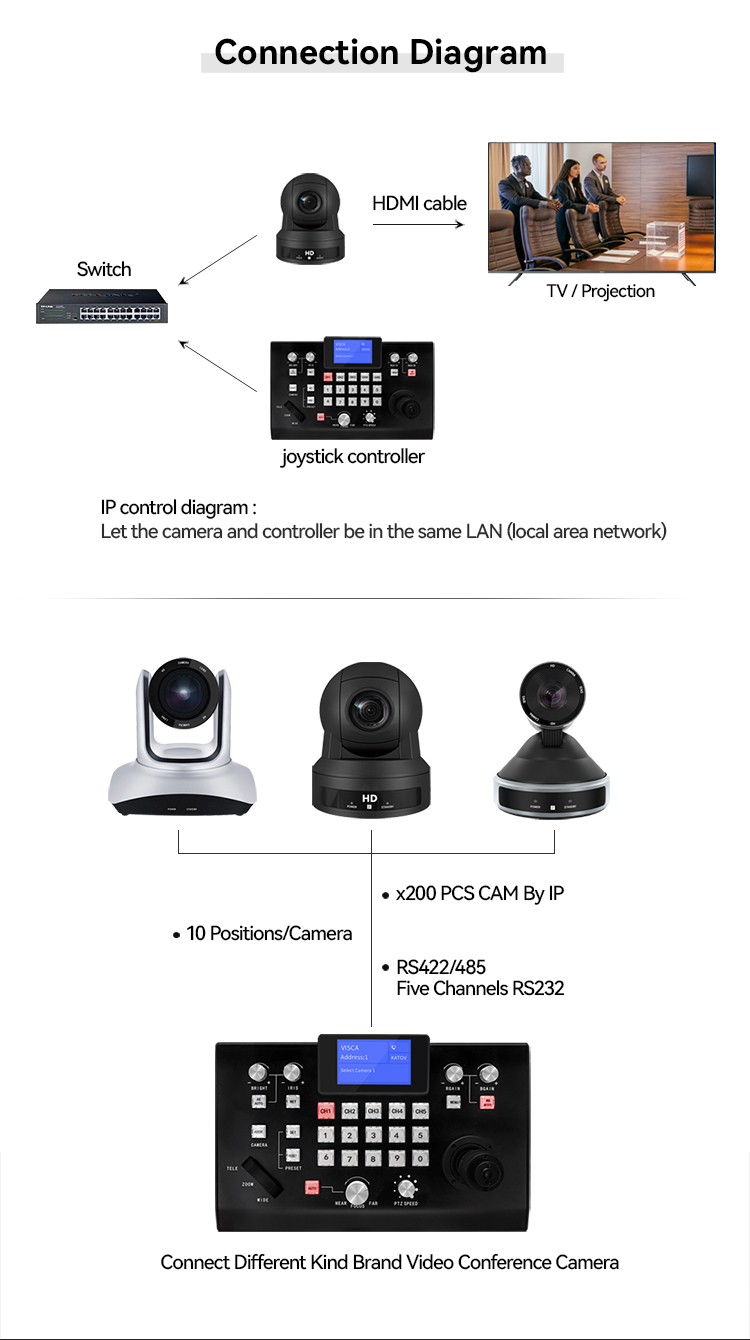

【5 channels RS232, 5 channels IP shortcut, fast camera selection, support multiple connection methods: LAN / RS232 / RS422 / RS485 at the same time】

【Network protocol support VISCA Over IP, ONVIF(NDI optional)】
【Serial port protocol support VISCA, Pelco D, Pelco P】
【Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200】
【VISCA protocol supports automatic address allocation and can display the number of cascade cameras】
【Quickly control the camera focus, exposure, white balance, backlight compensation and other functions by professional broadcast knobs】
【Integrated 3D joystick, can control the camera: Pan, Tilt, Zoom】

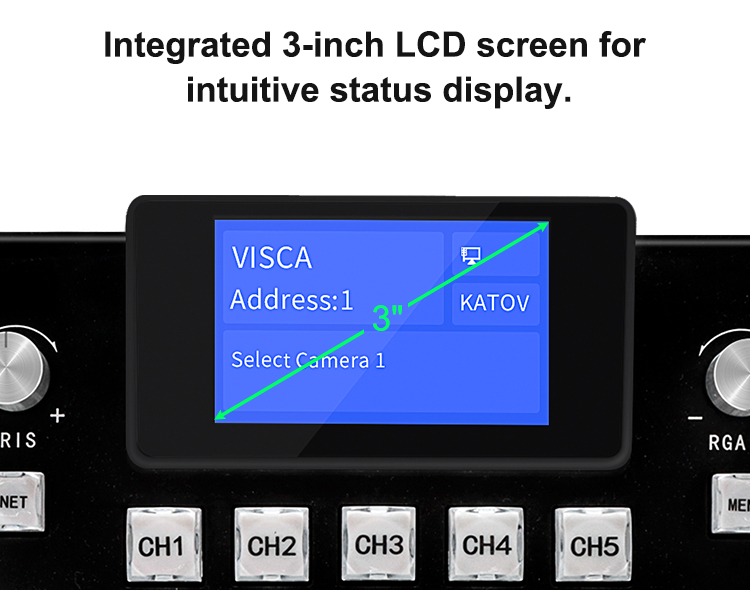

【Integrated 3” LCD screen to visually display the current status】
【Integrated Tally interface】

Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.

Related Category
4K PTZ Camera,FHD PTZ Camera,NDI PTZ Camera,Webcam,Education Tracking Camera,Video Conferencing System,
Live HD Camera,Integrated Audiovisual Intelligent Endpoint,Integrated HD Camera,Speakerphone,Cam Controller,
Video Switcher,Ptz Controller,Control Panel

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

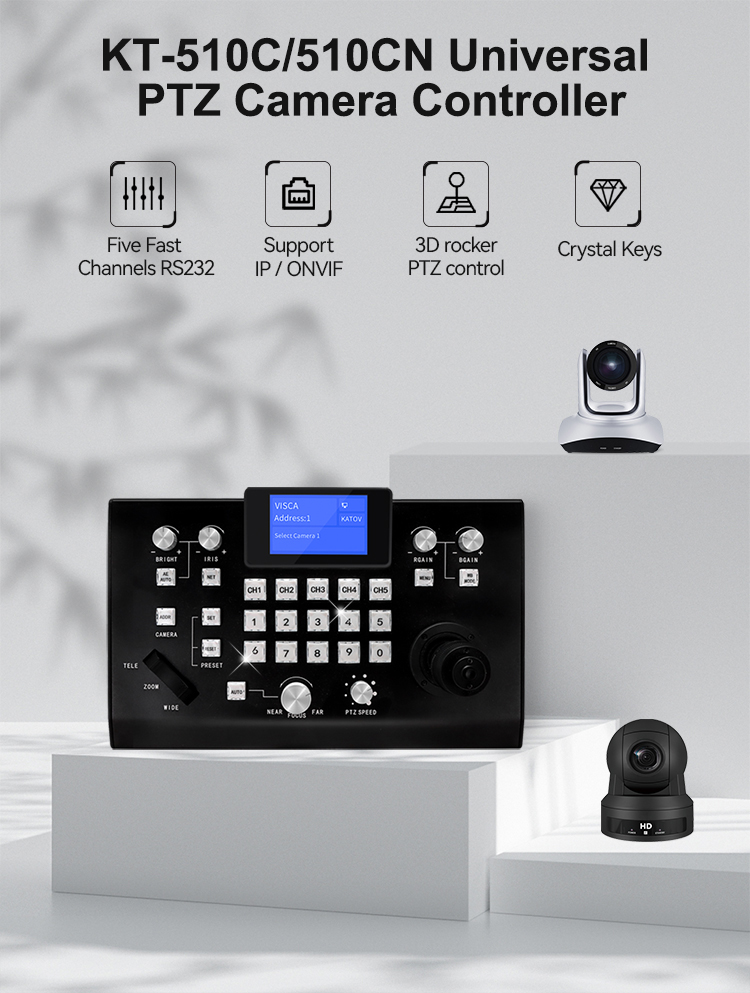

3D NDI PTZ Camera with RS232 RS485 ONVIF VISCA IP POE Keyboard Joystick Controller for Video Conference System

Main Parameters

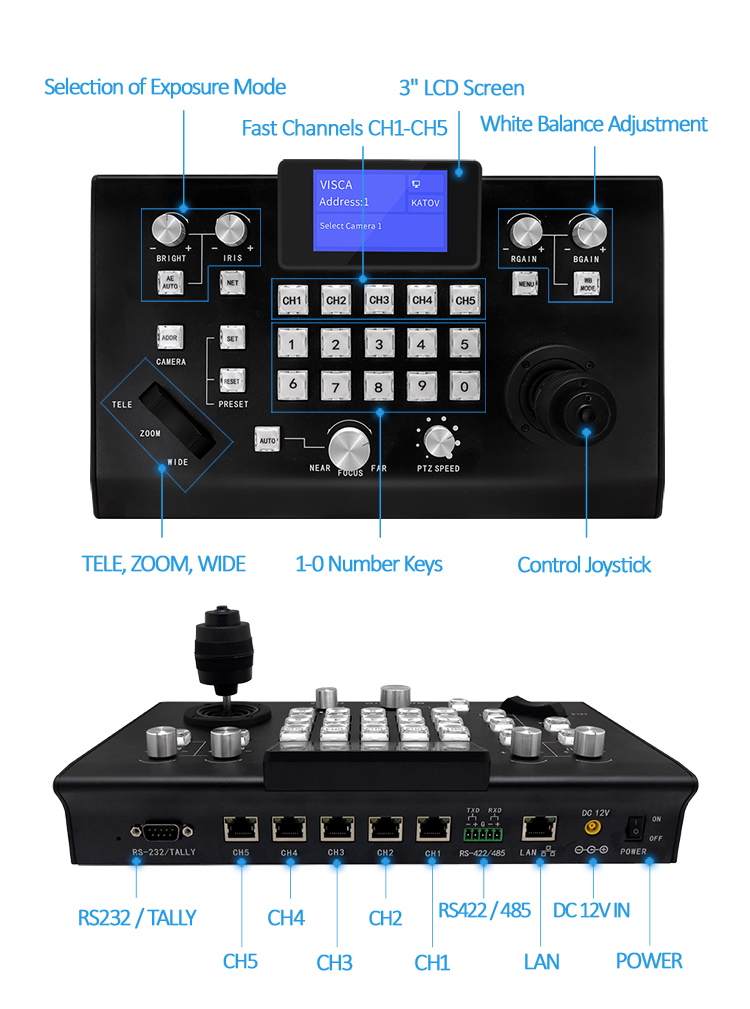

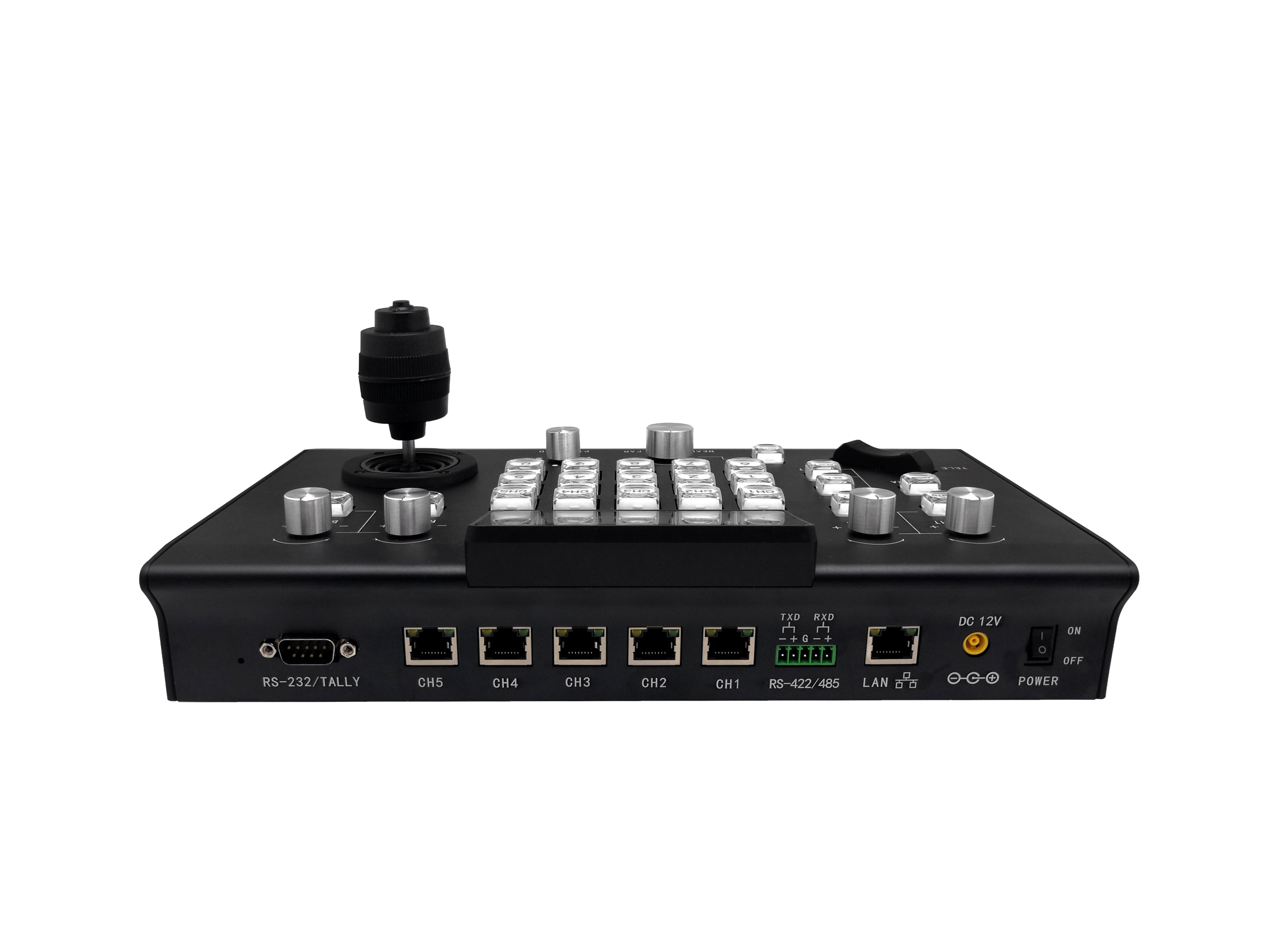

Input And Output

RS232/485: RJ45 x5(CH1-CH5)



RS-232: DB9 x1



RS422: 5pin x1



LAN: RJ45 x1

Serial Port Baud Rate

2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422)

Monitor

3 inch LCD, support Chinese and English display

Speed Control

Buttons control(corresponding to PTZ, zoom)

3D Joystick

Yes, support PTZ control

Camera Control

Maximum Control Quantity

IP: 255, VISCA: 7 x5, Pelco P/D: 10 x5

Control Protocol

IP: Visca Over IP,  Onvif,  NDI



RS-232/RS-422/485:Visca, Pelco P/D

Exposure Mode Selection

Support

Aperture Value Adjustment

Support

Brightness Value

Support

Adjustment



Shutter Speed

Nonsupport

Adjustment



Backlight Compensation

Support

switch



White Balance Mode Selection

Support

R, B Gain Adjustment

Support

Focus Mode Selection

Support

Manual Focus

Support

General Specifications

Input Voltage

DC 12V (10.8V~13.2V),POE(IP)

Power Consumption

2W

Operating Temperature

0°C~40°C,(32°F~104°F)

Storage Temperature

-20°C~60°C,(-4°F~140°F)

Dimension

(W)296*(D) 180*(H)115mm

Weight

1.5kg

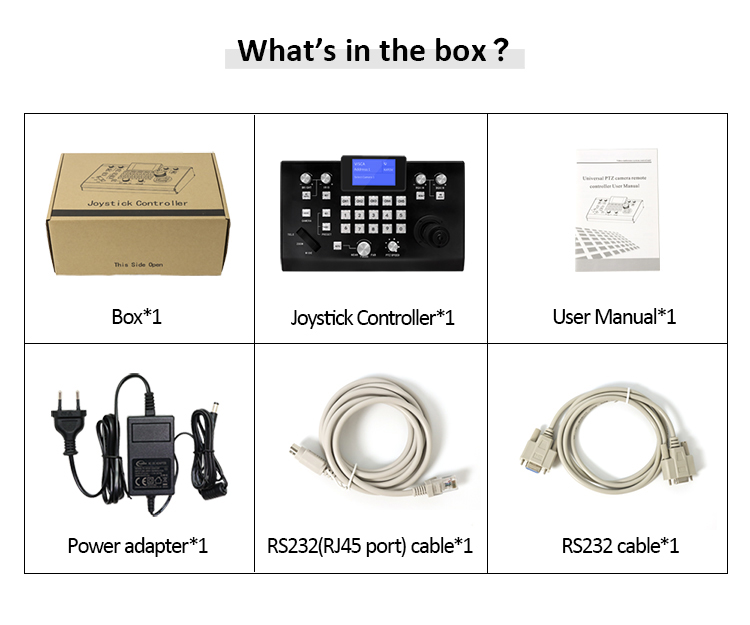

Standard Accessories

Power Adapter(110V AC~220V AC to 12V DC) x1, RS232 cable x1, RJ45 to DB9 RS232 cable, user manualx1
